LID for Hermetic Seal Package

LID for Hermetic Seal Package

Elephane CS is half hardening state (B-stage) adhesive for hermetic seal package, which uses thermosetting epoxy resin.

Adhesive is applied to various designated materials (glass, plastic, metal, ceramics, films, etc.) by patterning printing only at the necessary parts. We provide products with the adherend material and adhesive, which is controlled to B stage so that it can be stored at room temperature.The adhesive can easily melt and adhere to the adherend by heating and pressing. Thus, it can also be used as a temporary adhesive material, and by heating it further cures and exhibits high adhesive sealing properties.

View full details
  • Adhesive Performance

    • Tomoegawa has special designed adhesive for airtightness, resistance against humidity, heat resistance, reflow characteristics-resistant.
    • Adhesive is controlled half-hardening state that handling is easy for tack-free.
    • Shelf life of adhesive is possible to three-month in room temperature
  • Coating Technology

    • Coating processes are possible to optimized for customer design.
    • Every designs are possible by the various precision technology such as dicing process
  • Adding Property

    • Dustness control is possible for high clean technology.
    • Coating of various films, and adding of optical characteristic by vapor deposition process.
1 of 3

Elephane CS is half hardening state (B-stage) adhesive for hermetic seal package, which uses thermosetting epoxy resin.

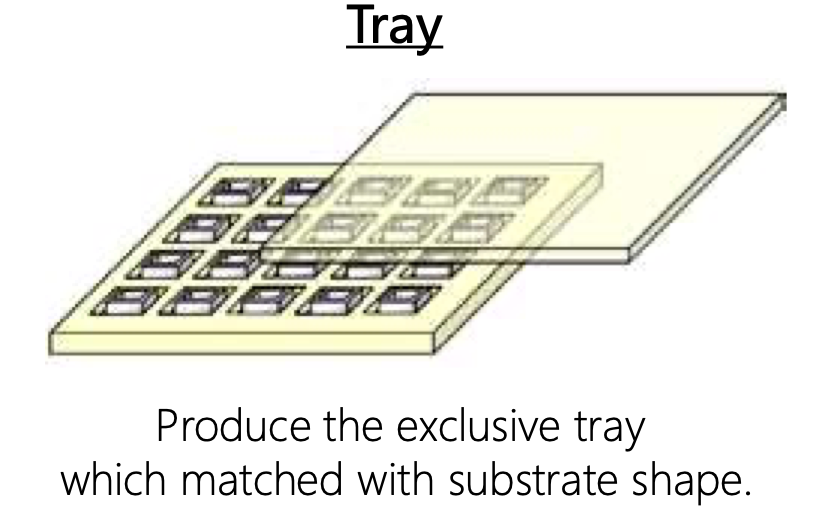

Produce the exclusive tray which matched with substrate shape.

Compared with the liquid adhesive, Elephane CS has the merits such as simplification of the coating process, anti-drip, better squeeze-out control. It can be used in various fields with adhesion and sealing as keywords, such as electronic parts, automobiles and batteries etc.

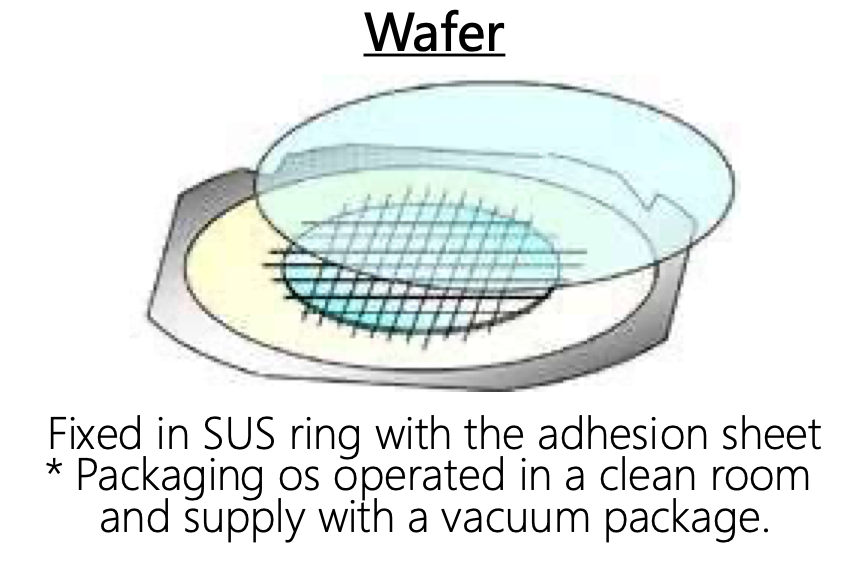

Fixed in SUS ring with the adhesion sheet * Packaging os operated in a clean room and supply with a vacuum package.

The ELEPHANE®CS package is a type of hermetic seal package that uses a ceramic substrate as the base material. The lid for this package is typically made from a metal such as stainless steel or titanium, which is welded or soldered onto the package to create an airtight seal. The lid may also be coated with a layer of glass or other material to provide additional protection against moisture and other contaminants.
