This guide provides an in-depth understanding of thermal interface materials (TIMs) in modern electronics, focusing on their importance and their role in efficient heat transfer between components and heat sinks.
As electronic devices grow in size and power, the demand for effective thermal management solutions is increasing. The guide covers thermal conductivity basics and material technology advancements, helping users make informed decisions about TIMs and navigate the complexities of thermal management with confidence.
What Are Thermal Interface Materials?
Thermal interface materials (TIMs) are substances used to enhance the thermal connection between two surfaces, typically between a heat source (like a processor or power transistor) and a heat sink or a spreader.
The primary purpose of TIMs is to fill in the microscopic air gaps and surface irregularities that naturally occur between these two surfaces. Being a poor conductor of heat, air can hinder efficient heat transfer, leading to potential overheating issues.
TIMs come in various forms, including pastes, pads, tapes, and even liquid metals. Each type has its specific use case, advantages, and disadvantages, which we’ll explore further in this guide.
Why Are Thermal Interface Materials Important?
With the continuous miniaturization of electronic devices and the increase in their processing power, the amount of heat generated has also increased. Effective thermal management is no longer just an option; it’s a necessity.
Here’s why thermal interface materials are so crucial:
- Prevent Overheating
By efficiently transferring heat away from critical components, TIMs prevent overheating, which can cause components to fail or reduce their lifespan.
- Improve Performance
Many electronic components, such as CPUs and GPUs, throttle their performance when they get too hot. By using the right TIM, you can ensure that these components run at their optimal performance levels.
- Increase Durability
Constant exposure to high temperatures can degrade materials over time. Proper thermal management ensures that devices and components remain functional for longer periods, reducing the need for replacements.
Types of Thermal Interface Materials
Several types of thermal interface materials exist, each designed for specific applications and performance requirements. Understanding the differences can help you choose the right one for your project.
Thermal Pastes
Thermal pastes (often referred to as thermal grease or compound) are among the most common types of TIMs. They are typically used in scenarios where the surfaces being connected are relatively smooth, but not perfectly flat. Thermal pastes are easy to apply and offer excellent thermal conductivity. They are especially popular in the DIY PC building community for applying between CPUs and heatsinks.
- Pros: High thermal conductivity, easy to apply, widely available.
- Cons: Can dry out over time, and may require reapplication.

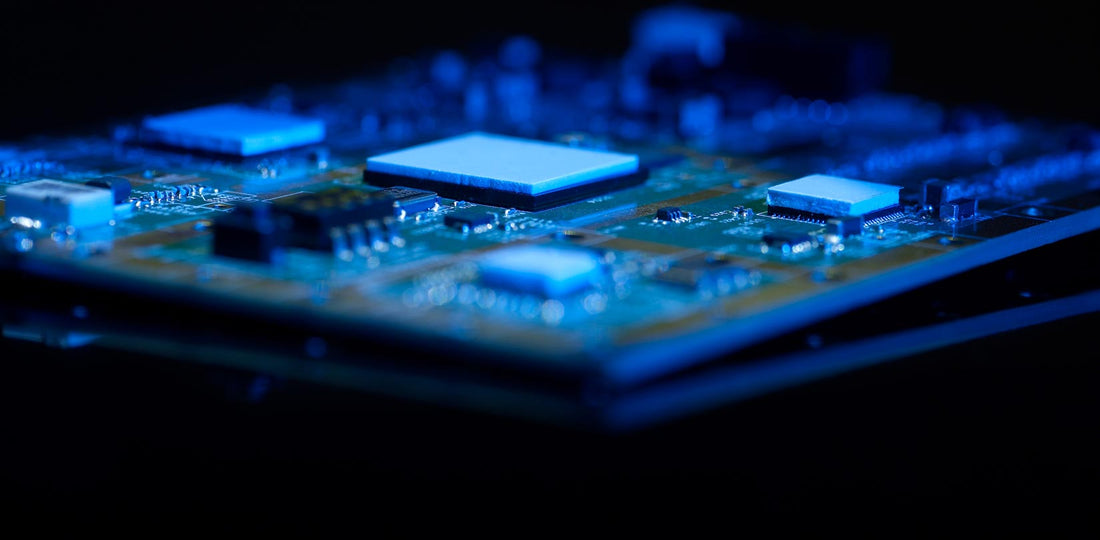

Thermal Pads
Thermal pads are solid, often rubber-like materials that can be cut to fit the surfaces they’re intended to bridge. They’re easier to apply than pastes since they don’t require the same level of precision. Pads are often used in situations where components are uneven or where there’s a significant gap between the surfaces.
- Pros: Easy to use, no mess, reusable.
- Cons: Lower thermal conductivity compared to pastes, less effective at filling microscopic gaps.
Thermal Tapes
Thermal tapes are adhesive tapes that have thermal conductivity properties. They are ideal for attaching components like heatsinks to low-power devices where mechanical fastening is not possible or practical. Thermal tapes are easy to apply and remove but offer lower thermal conductivity than pastes or pads.
- Pros: Easy to apply, provides both adhesion and thermal management.
- Cons: Lower thermal conductivity, not suitable for high-power applications.
Liquid Metal
Liquid metal TIMs are a newer innovation in the thermal management space. They offer superior thermal conductivity compared to pastes, pads, and tapes but come with a few caveats. Liquid metal is conductive, which means it can cause short circuits if it spills onto other components. It’s also not compatible with aluminum surfaces as it can cause corrosion.
- Pros: Highest thermal conductivity, excellent for extreme overclocking scenarios.
- Cons: Conductive (risk of short circuits), corrosive to aluminum, more difficult to apply.
How to Choose the Right Thermal Interface Material
Choosing the right thermal interface material depends on several factors, including the application, the surfaces involved, and the required thermal management level.
Here are some key considerations:
- Thermal Conductivity
This is perhaps the most critical factor. If you’re dealing with high-performance components that generate a lot of heat, such as a gaming CPU or GPU, you’ll want a TIM with high thermal conductivity, like a quality thermal paste or liquid metal.
- Application Ease
For DIY enthusiasts or those working on smaller projects, ease of application might be a priority. In such cases, thermal pads or tapes might be more convenient, even if they don’t offer the best thermal performance.
- Durability
Some TIMs, like thermal pastes, may dry out or degrade over time, requiring reapplication. Consider the longevity of the material, especially in applications where maintenance is challenging.
- Compatibility
Ensure that the TIM is compatible with the materials of your components. For instance, avoid using liquid metal on aluminum surfaces to prevent corrosion.
Best Practices for Applying Thermal Interface Materials
No matter which type of thermal interface material you choose, proper application is crucial for maximizing its effectiveness.
Here are some tips:
- Clean Surfaces Thoroughly
Before applying any TIM, make sure both surfaces are clean and free of any old TIM, dust, or debris. Use isopropyl alcohol and a lint-free cloth for best results.
- Apply Evenly
Whether you’re using paste, pads, or liquid metal, ensure that the TIM is applied evenly across the surface to avoid air pockets and ensure optimal heat transfer.
- Avoid Over-Application
Applying too much TIM can be counterproductive, leading to reduced heat transfer and even potential spillage onto other components.
Key Takeaways
Thermal interface materials (TIMs) are crucial for the performance and longevity of electronic devices. Understanding different types and choosing the right one is essential for both professionals and DIY enthusiasts. Applying the correct TIM ensures cooler components, better performance, and longer lifespan. Evaluating needs, choosing wisely, and applying TIM with care can lead to smoother systems and reduced overheating issues.
