Copper Alloys
Copper Alloys
Copper alloys are a popular choice in various industries due to their excellent thermal and electrical conductivity, corrosion resistance, and durability. Prince & Izant offers a range of copper brazing alloys.
-
CDA 102
CDA 102 is a fluid filler metal used for brazing of ferrous and nickel based alloys in particular steel, stainless steel and copper-nickel alloys. This alloy is typically used in furnace braze applications without the use of flux.
Collapsible content
Specifications
- Brazing Temperature Range High: 2081 F / 1138 C
- Brazing Temperature Range Low: 1981 F / 1083 C
- Liquidus: 1981 F / 1083 C
- Solidus: 1981 F / 1083 C
- Cu: 99.95%
Properties of Brazed Joints
The properties of a brazed joint are dependent upon numerous factors including base metal properties, joint design, metallurgical interaction between the base metal and the filler metal.
Forms:

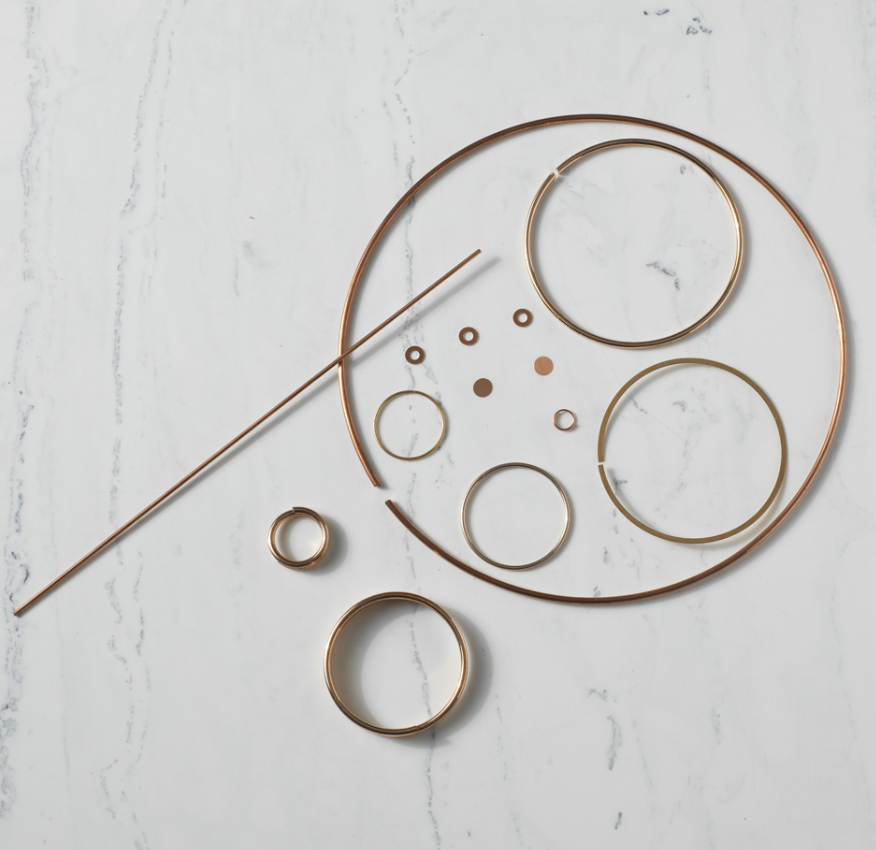

Wire, strip, engineered preforms, specialty preforms per customer specification, powder and paste.
-
CDA 110 Technical Data
CDA 110 is a fluid filler metal used for brazing of ferrous and nickel based alloys in particular steel, stainless steel and copper-nickel alloys. This alloy is typically used in furnace braze applications without the use of flux.
Collapsible content
Specifications
- Brazing Temperature Range High: 2081 F / 1138 C
- Brazing Temperature Range Low: 1981 F / 1083 C
- Liquidus: 1981 F / 1083 C
- Solidus: 1981 F / 1083 C
- Cu: 99.95%
Properties of Brazed Joints
The properties of a brazed joint are dependent upon numerous factors including base metal properties, joint design, metallurgical interaction between the base metal and the filler metal.
Forms:
Wire, strip, engineered preforms, specialty preforms per customer specification, powder and paste
-
Cu-Ag Brazing Alloys: These alloys contain copper and silver as the primary components and are ideal for brazing stainless steel, copper, and nickel alloys.
-
Cu-P Brazing Alloys: These alloys contain copper and phosphorus as the primary components and are commonly used in refrigeration and air conditioning equipment due to their high thermal conductivity and low melting point.
-
Cu-Ni-Zn Brazing Alloys: These alloys contain copper, nickel, and zinc as the primary components and are suitable for brazing copper, brass, and bronze materials.
-
Cu-Sn Brazing Alloys: These alloys contain copper and tin as the primary components and are commonly used in plumbing and HVAC applications due to their excellent corrosion resistance and reliability.
Overall, Prince & Izant's copper brazing alloys offer excellent performance and durability in a range of applications, from electronics manufacturing to HVAC engineering.
